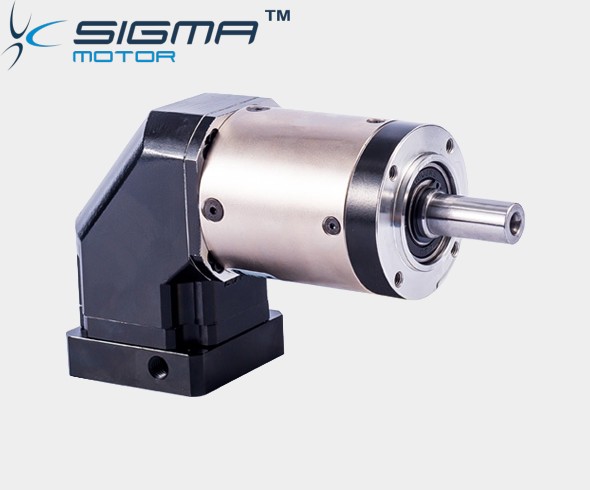

Прецизионный планетарный редуктор

Серия WPLR

Преимущества

♦ низкий люфт ♦ бесшумный ♦ высокоэффективный ♦ длительный срок службы

Наименование модели

PLR-090-010-P2

PLR: Серия (AB/AD/AE/PL/PF/R/T/VRB/ABR/ADR/AER/PLR/PRF/VRBR)
090: Размер.No (042/060/080/090/120/140/160)
010: Передаточное отношение (003,004,005,006,007,008,010…070,100,140,200)
P2: Люфт (P2≤12armin)

WPLR Series Performance Table
Specification	Unit	Stage	Ratio	WPLR042	WPLR060	WPLR080	WPLR120	WPLR160
Rated output torque T_2N	Nm		3	8	18	40	125	290
			4	18	36	90	230	460
			5	16	40	no	260	550
			6	8	20	40	90	340
			7	8	20	40	90	340
			8	5	12	22	70	210
			10	5	12	22	70	210
			12	8	20	40	90	340
			14	8	20	40	90	340
			20	5	12	22	70	210
		2	15	16	36	90	125	550
			25	16	36	90	260	550
			30	16	36	90	125	290
			35	16	36	90	260	550
			40	16	36	90	230	460
			48	18	40	110	230	460
			50	16	36	90	260	550
			60	16	36	90	230	340
			70	16	36	90	230	340
			80	16	36	90	230	460
			90	16	—	90	230	290
			100	16	36	90	230	550
			120	8	22	55	125	340
			140	8	22	55	125	340
			160	5	15	50	120	210
			200	5	12	22	70	210
Emergency stop torque T_2NOT	Nm	1,2	3-200	Double rated output torque
Rated input speed η1N	rpm	1,2	3-200	4500	4000	3500	3500	3000
Maximum input speed η1B	rpm	1,2	3 〜200	10000	8000	6000	6000	4500
Standard backlash P2	arcmin		3~20	≤22	≤16	≤10	≤10	≤10
Standard backlash P2	arcmin	2	15-200	≤26	≤18	≤12	≤12	≤12
Torsional rigidity	Nm/arcmin	1,2	3 〜200	0.65	1 .8	4.7	1 1	35
Allowable radial force F_2aB	N	1,2	3-200	165	240	400	1240	3700
Allowable axial force F_2aB	N	1,2	3-200	135	220	420	1000	3500
Lifespan	hr	1,2	3 〜200	20000 *
Efficiency	%		3~20	≥96%
Efficiency	%	2	25-200	≥94%
Weight	kg		3~20	0.3	0.85	2	6	11
Weight	kg	2	25〜200	0.4	0.9	2.3	7.5	13
Working temperature	°C	1,2	3 〜200	(-10° C +90° C )
Lubricating				Synthetic lubricating grease
IP Grade		1,2	3-200	IP65
Installation direction		1,2	3-200	In any direction
Noise level ( η1=3000, offload)	dB(A)	1,2	3-200	≤60	≤60	≤63	≤68	≤75
